- Maximum Voltage: 300V AC/ 48V DC, Terminal Stud: 1 x #10-32, Continuous Rating: 100A AC/ 100A DC, Bus Material: Tin-Plated Copper C11000, Mounting Holes: Accepts 1/4" (6mm) Screws, Terminal Screws: 4 x #8-32, Wire Size: (1) 8 AWG to 4 AWG - Input/ (4) 16 AWG to 10 AWG - Load
- Water-resistant design with standard ring or spade type terminals allows for simple wiring with standard tools
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used, and 4 write-on circuit labels
- Ideal for positive distribution and for the collection of negative or AC ground circuits
- Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
- Not ABYC compliant, not intended for marine applications, use PN 2356100 for marine use

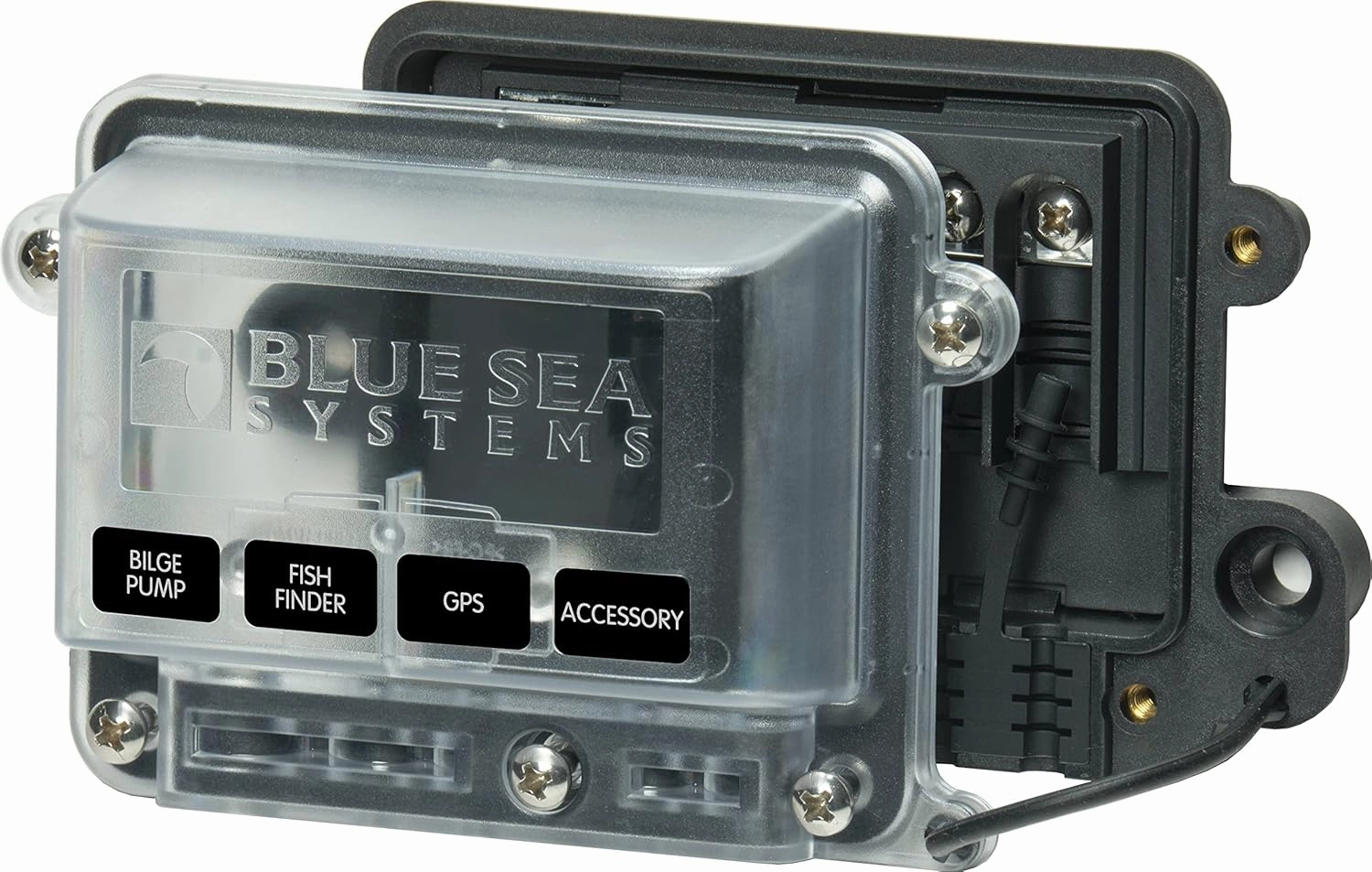

Provides secure water-resistant bussing for harsh environments.
