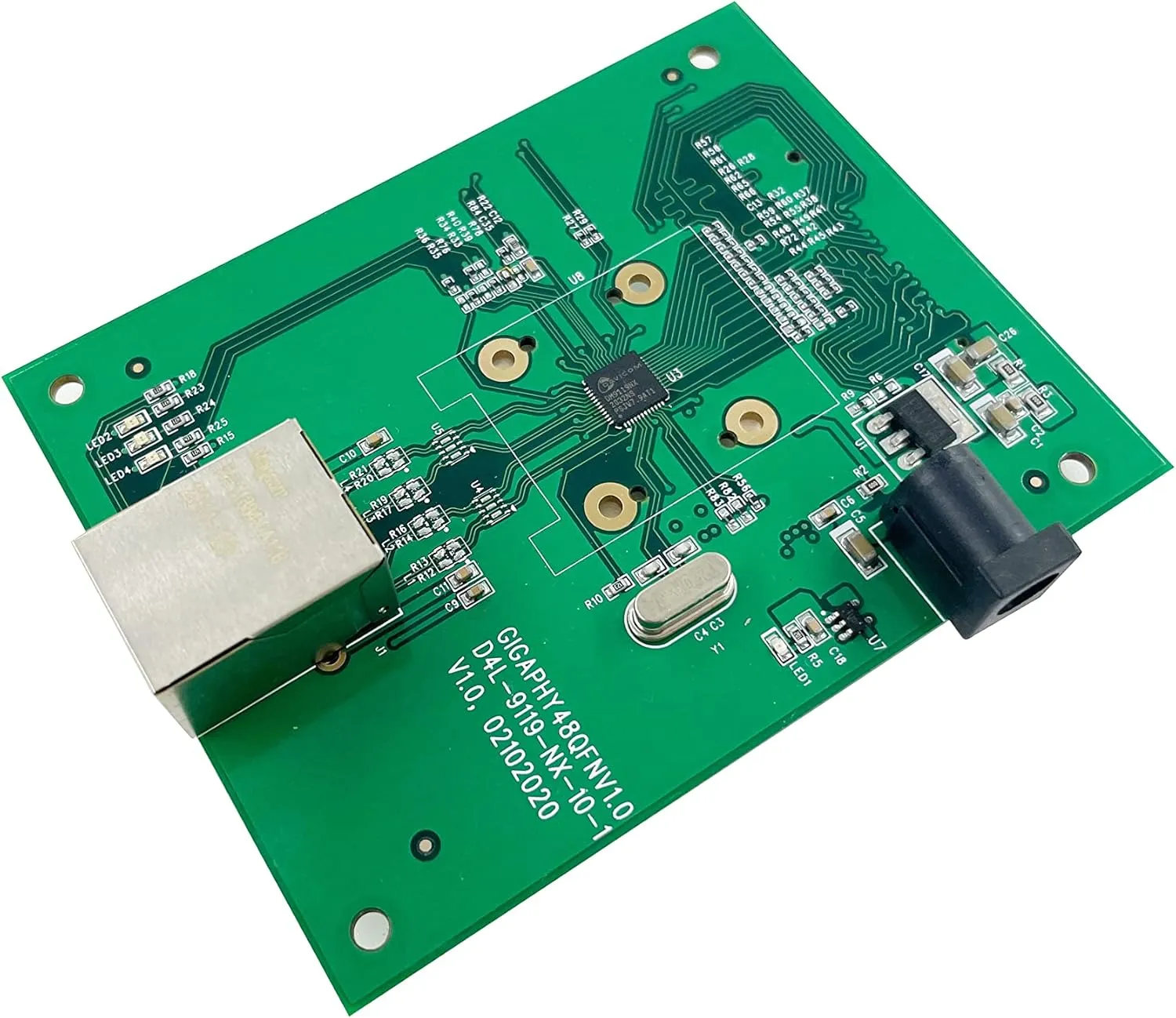

Davicom Semiconductor DM9119 EVB

Davicom Semiconductor DM9119 EVB is used to evaluate DM9119 Gigabit Ethernet PHY.

The board comes with a RGMII female place on bottom to connect with the CPU platform for developing Gigabit Ethernet.

The board takes advantage of IEEE 802.3AZ Energy Efficient Ethernet and Power-down mode as well as Wake-on-LAN power management to optimize power consumption.

The DM9119 is a single-chip Gigabit Ethernet Transceiver, which is compliant with IEEE 802.3 Media Access Controller and IEEE 802.3u 1000BASE-T/100BASE-TX/10BASE-T. It also supports IEEE 802.3az, Energy Efficient Ethernet (EEE).

The advanced on-chip mixed signal processing such as equalization, crosstalk cancellation, clock recovery, error correction, crossover detection/correction, and polarity correction provides robust transmission.

The RMII timing adjustment features remove the necessity for the delay between DM9119 and the link partner.

ESD: HMB 6KV

The DM9119 supports the Reduced Gigabit Media Independent Interface (RGMII) to the MAC controller.

• Applications：

  *High-definition digital signage, public information display.

  *Network Interface Adapter.

  *Surveillance Camera.

  *Game machine.

  *Embedded System.
