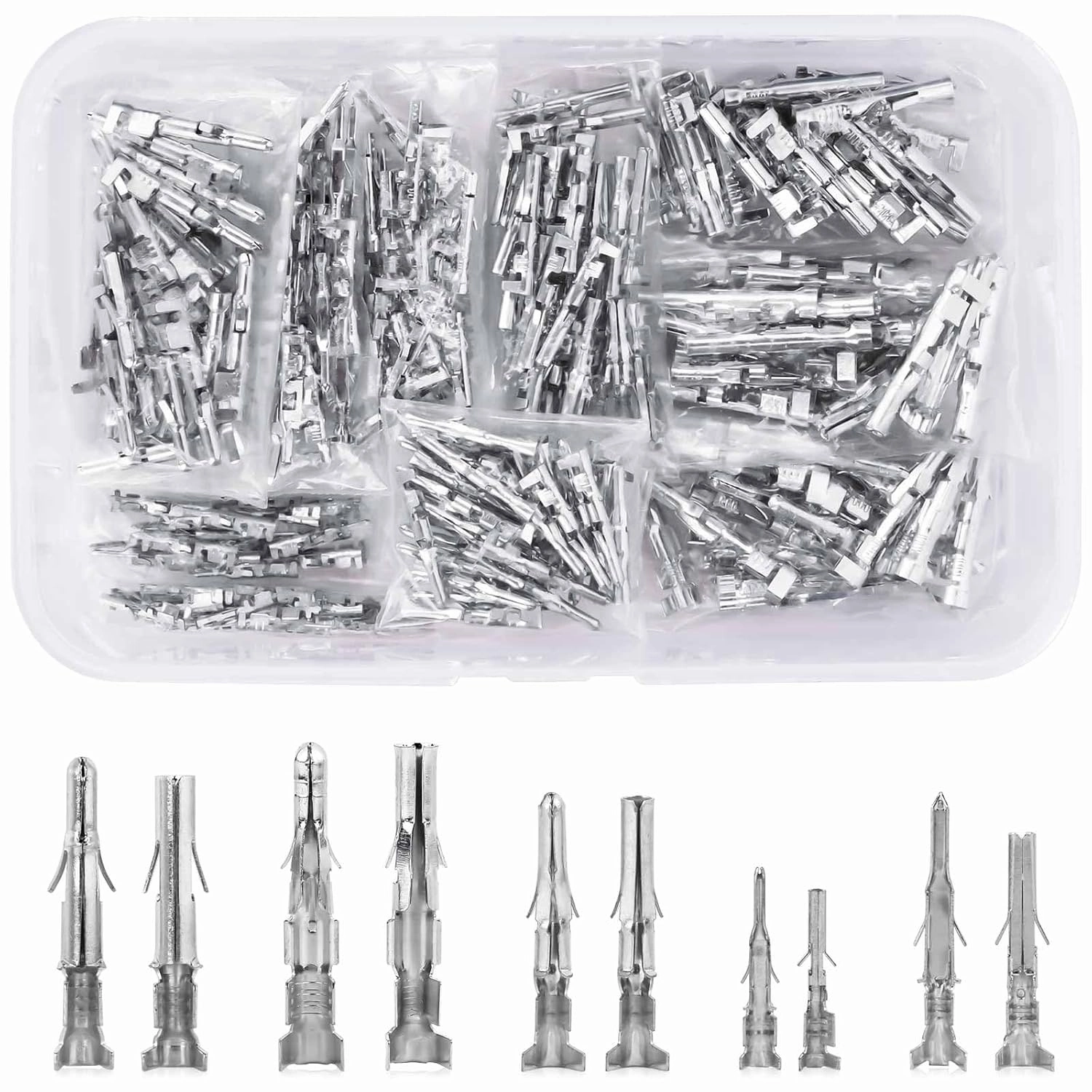

Name: JRready ST6527 150Pairs Pins Terminal Kit 093" 062" Mini-Fit Jr. MLX Micro-Fit Car Automotive Terminals Electrical Pin Connectors 14-20AWG 18-24AWG 20-24AWG Single Pin Sockets Contact Standard Molex
SKU: 399781

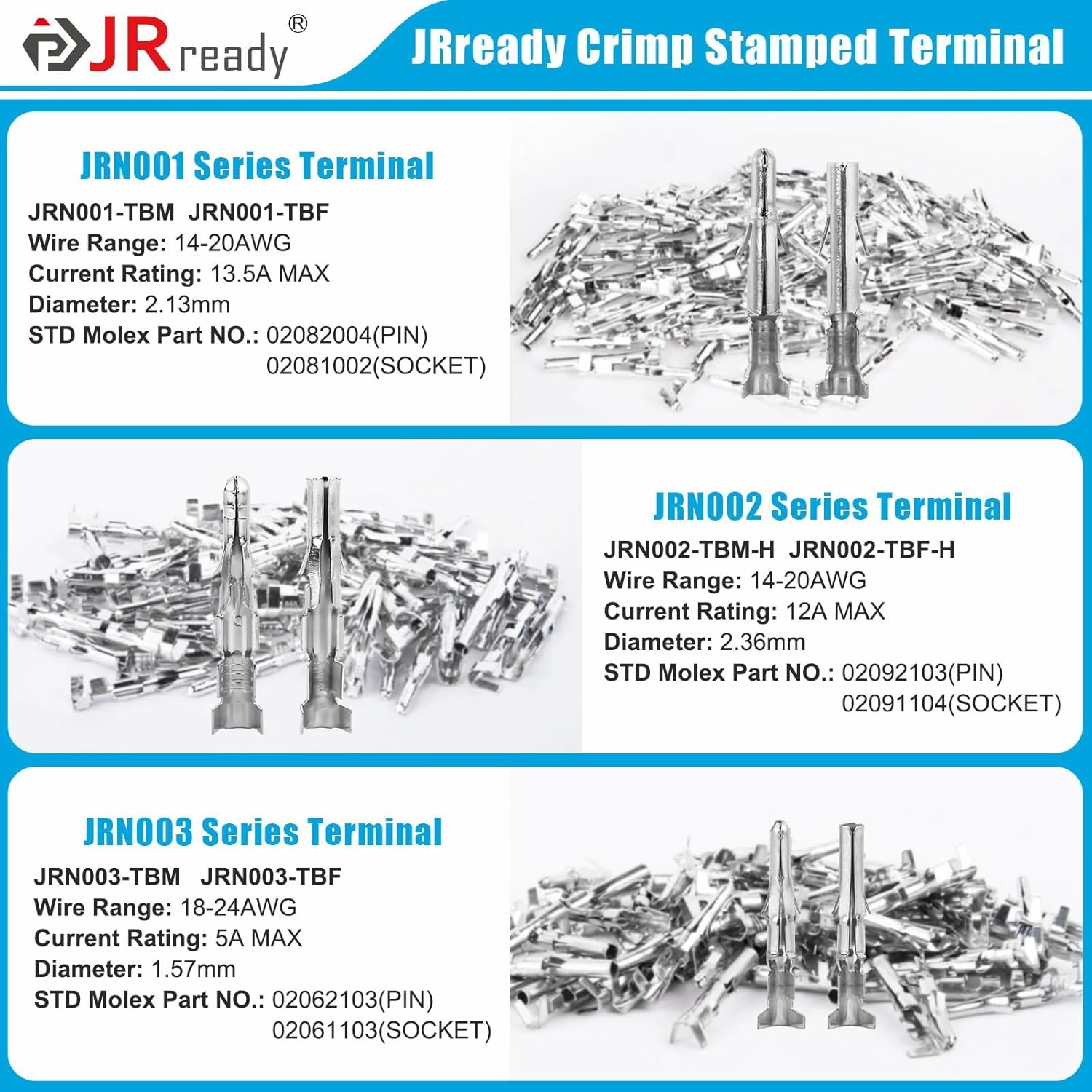

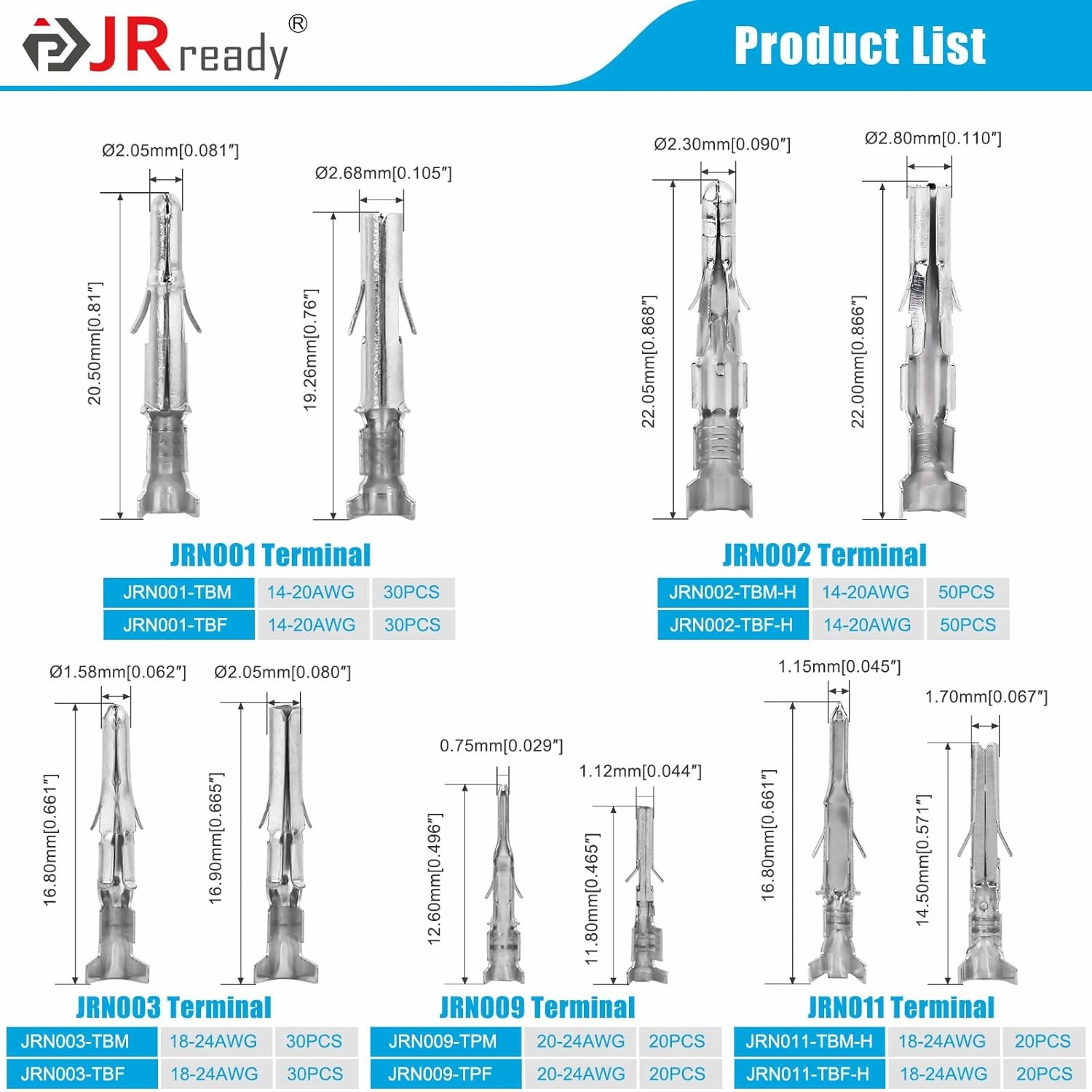

JRN001 Contact: Made of tin-plated brass, compatible with Molex MLX(.084"). Wire range is 14-20AWG, rated current is 13.5A MAX, rated voltage is 600V AC, DC. Standard MOLEX pin: 02082003/02082004, socket: 02081001/02081002
JRN002 Contact: Made of tin-plated brass, compatible with Molex .093". Wire range is 14-20AWG, rated current is 12A MAX, rated voltage is 250V AC, DC. Standard MOLEX pin: 02092101 / 02092103，socket: 02091102 / 02091104.
JRN003 Contact:Made of tin-plated bras, compatible with Molex .062". Wire range is 18-24AWG, rated current is 5A MAX, rated voltage is 250V AC, DC. Standard MOLEX pin: 02062103 / 02062101，socket: 02061103 / 02061101.
JRN009 Contact: Made of Phosphor Bronze, compatible with Molex Micro-Fit. Wire range is 20-24AWG, rated current is 7A MAX, rated voltage is 250V AC,DC. Standard MOLEX pin: 43031-0001/43031-0007，socket: 43030-0001/43030-0007.
JRN011 Contact: Made of tin-plated brass, compatible with Molex Mini-Fit Jr. Wire range is 18-24AWG, rated current is 9A MAX, rated voltage is 250V AC, DC. Standard MOLEX pin: 39-00-0040/39-00-0041，socket: 39-00-0038/39-00-0039.
Professional Test: JRready terminals undergo rigorous tensile testing，ensure the terminals can withstand a certain amount of force without loosening, falling off, or being damaged, and that the terminal connection has high stability, durability, and reliability.

Package Dimensions ‏ : ‎ 4.76 x 3.11 x 1.46 inches; 6.4 ounces
Date First Available ‏ : ‎ January 18, 2025
Manufacturer ‏ : ‎ JRready

JRready ST6527 150Pairs Pins Terminal Kit 093" 062" Mini-Fit Jr. MLX Micro-Fit Car Automotive Terminals Electrical Pin Connectors 14-20AWG 18-24AWG 20-24AWG Single Pin Sockets Contact Standard Molex

Product Details
